Dataset Title:	EQUIFy - Kincardine ADCP current velocity - M3 - Level 3 - V1.0
Institution:	Plymouth Marine Laboratory (Dataset ID: M3_25_6a46_cc53_f998)
Range:	depth = -3.9550383 to 65.86108m, time = 2025-08-13T16:31:00Z to 2025-09-02T08:31:00Z
Information:	Summary \| License \| Metadata \| Background \| Data Access Form \| Files

To work correctly, this web page requires that JavaScript be enabled in your browser. Please:
1) Enable JavaScript in your browser:
      • Chrome: "Settings : Advanced : Privacy and security : Site Settings : JavaScript"
      • Firefox: (it should be always on!)"
      • Opera: "Settings : Websites : JavaScript"
      • Safari: "Safari : Preferences : Security : Enable JavaScript"
2) Reload this web page.

Graph Type:

X Axis:

Y Axis:

Color:

Constraints	Optional Constraint #1		Optional Constraint #2

Server-side Functions

distinct()

Hover here to see a list of options. Click on an option to select it.

Graph Settings

Marker Type:

Size:

Color:

Color Bar:

Continuity:

Scale:

Minimum:

Maximum:

N Sections:

Y Axis Minimum:

Maximum:

(Please be patient. It may take a while to get the data.)

Optional:
Then set the File Type: (File Type information)
and

or view the URL:
(Documentation / Bypass this form

)

Time range:

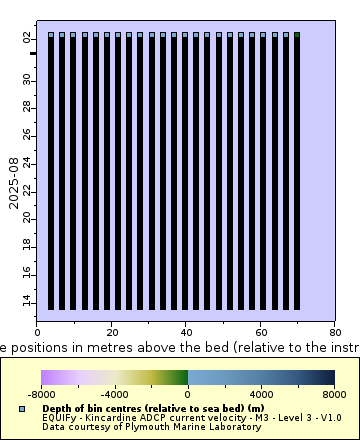

[The graph you specified. Please be patient.]
